Supports programming and debugging of all NuMicro® Family |
| • |

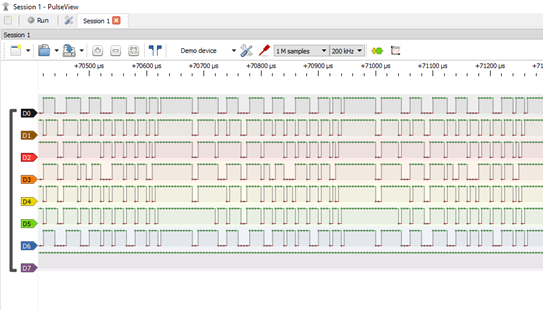

Support logic analysis and signal decoding functions |
| |
- Supports real-time digital signal analysis of up to 6 channels with open-source software PulseView
 |
| • |
Native MicroPython support |
| |
- Supports execution of MAIN.py scripts stored in Micro SD card |
| • |
Supports In-Circuit Programming (ICP) |
| |
- Selectable SWD output voltage (1.8/2.5/3.3/5.0 V) |
| |
- Drag & drop Flash programming |
| • |
Supports Offline programming |
| |
- Press-to-start button for Offline programming |
| |
- Offline auto IC programming by Automated Programmer header (Control Bus) |
| |
- USB flash drive, SD card, and SPI Flash as image file storage for Offline programming |
| |
- Nu-Link3-Pro power support by Micro USB or target-powered via SWD interface |
| • |
"Bridge" connection interface supports USB to serial data |
| |
- Serial data bridge supporting ISP function (I²C, I3C, SPI, UART, CAN FD, and RS-485 ) |
| |
- USB to Serial Data Bridge (I²C, I3C, SPI, CAN FD, and RS-485) to send or receive serial data |
| |
- Support analysis of data in serial communication interface (I²C, I3C, SPI, CAN FD, and RS-485) |
| |
- Supports virtual serial port (Virtual COM Port) |
| • |
Support In-System Programming (ISP) |
| |
- Product firmware upgrade by "Bridge" interface (I²C, I3C, SPI, UART, CAN FD, and RS-485) |
| |
- Support ISP Programming Tool |
| • |
Support multiple debugging interfaces and tools |
| |
- Supports Serial Wire debug (SWD) |
| |
- Supports high speed up to 110 MHz of Embedded Trace Macrocell (ETM) |
| |
- 20-pin Cortex Debug + ETM connection interface |
| |
- Unlimited breakpoint and step execution |
| |
- Supports Arm DAPLink |
| |
- Supports pyOCD |
