On the NAU83G20 setup with the NAD Evaluation Platform, a 12V DC power supply is required. The 12V supply will provide power to NAU83G20 ADP as well as the M4 and other components. Because of this, it is best to have more power than the maximum capacity of the NAU83G20. As such, the preferred power supply is 12.6V (4A), for stereo applications on the NAU83G20. Because the 12V DC Supply provides power to all of the components, it is suggested to remove the D11 Jumper (or Diode) for operation so that the 12V Power from USB is not conflicting with 12V DC Power Supply.

IMPORTANT NOTE: To avoid damaging the chip, DO NOT use any voltage higher than 13.8V for the
DC Power supply on the NAD Board.

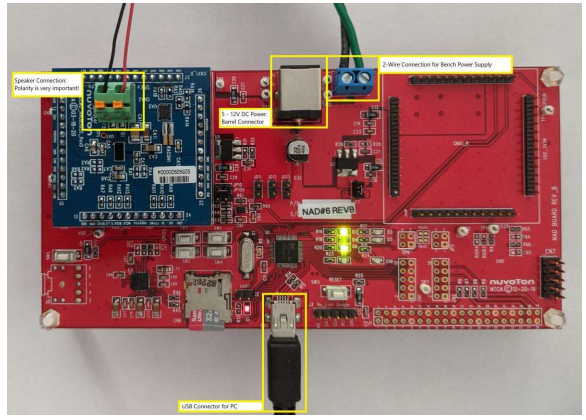

                                                                                                                                                    NV-NAU83G20S Connection
