Gerda™-4UL Series

interiors

As user interfaces in mobility applications—such as vehicle interiors and motorcycles—continue to diversify and advance, the required functionality and quality of display systems are becoming increasingly demanding. Gerda™ delivers safe and comfortable in‑vehicle Human Machine Interface (HMI) solutions by integrating a wide range of advanced image processing and robust security functions.With high‑speed, large‑capacity embedded memory, Gerda™ enables highly functional systems without the need for external memory, contributing to reduced component count and lower overall system cost.

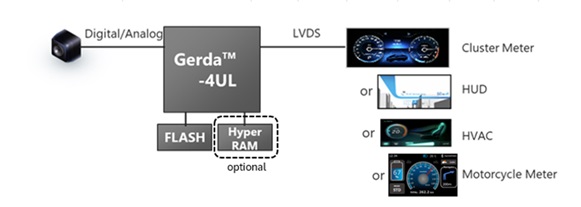

Gerda-4UL is a family of Gerda™ HMI Display ICs targeted at automotive systems such as instrument clusters for both four-wheelers and two-wheelers, as well as Head-Up Displays (HUD). Gerda-4UL has an Arm® Cortex®-M33 CPU, 2.5D Graphics Engine, Large Built-in RAM, Low-Power features, Hardware Security Module (HSM) and many functional safety mechanisms.



Product detail

LQFP128

LQFP100pins (12mm x 12mm)

LQFP128pins (14mm x 14mm)

LQFP144pins (20mm x 20mm)

Document

Gerda-4UL Product Brief



Block Diagram

Gerda-4UL Block Diagram

Click the image to enlarge.

Features

  • CPU subsystem
    • Arm® Cortex®-M33 CPU
    • DMA controllers
  • Video subsystem
    • Video Input (128/144pins)
      • DRGB or CVBS
    • Video Output
      • LVDS (4-lane) or DRGB I/F
      • Max display size: 800×480 @ 60FPS
    • 2.5D Graphics Engine
    • Image Quality Adjustment Engine
  • Memory
    • Built-In RAM 3.5MB
    • Quad SPI Flash
    • HyperRAM I/F (8bit Max 512Mbit) : (144pins)
  • Audio
  • Low-Power
    • Support Standby-mode
    • BackupRAM 8kB
    • Wakeup support (RTC/GPIO)
  • Communication I/F
    • CAN-FD
    • Ethernet 100Mbps (144pins)
    • Peripaherals
      • I2C / SSP / UART / ADC / GPIO
  • Security
    • HSM supporting the EVITA Full
  • Safety
    • Functional safety for ASIL-B


Support tool

We provide product datasheets, functional safety manuals, and evaluation board to support your system design.
Please contact us first.

 Evaluation Board

These evaluation boards enable comprehensive evaluation of Gerda-4UL’s video functions and overall feature performance. They support a wide range of development activities, from software development to full system validation. Sample code and SDKs applications for Cluster Meter and HUD are also available, allowing you to begin functional evaluation immediately. The evaluation board comes with peripheral interfece board,LCD panel, enabling performance verification and initial evaluation of Gerda-4UL ICs.

Gerda-4UL evaluation board

Gerda-4UL Evaluation Board



Nuvoton Mobility Solutions

Gerda‑4UL integrates high‑performance computing, high‑speed large‑capacity on‑chip memory,and advanced image technologies, delivering both ease of use and robust real‑time processing capabilities to enable compact, safe and comfortable HMI solutions.
