HMI Solutions
Gerda is ideal for advanced vehicle safety and HMI solutions such as HUD, instrument cluster and electronic mirrors.
Why Nuvoton Gerda?
Gerda integrates image processing, security, and display safety features designed for advanced standards. It accelerates the development and implementation of HMI solutions that elevate vehicle reliability and comfort.
-
Image Technology and Cost Efficiency:
• 2.5D graphics and image processing engines provide a safe and easy-to-see HMI.
• The large built-in RAM removes the need for external DRAM, enabling a simpler design and lower BOM cost. -
Security & Safety:
• Built-in HSM supporting EVITA-Full (OTA/secure boot).
• Supporting ASIL-B compliance for functional safety. -
Development Support:
• By providing EVBs, SDKs, and dedicated technical support, we accelerate your development process.
HMI Applications
IC Details
Click on any blue block in the diagram
to view relevant IC solutions.
Category Name
Featured Products AEC-Q100
Design Resources
We provide product datasheets, functional safety manuals, and evaluation board to support your system design. Please contact us first.
Technical Documentation
Flyer for Nuvoton HMI Solution
HMI MCU "Gerda" is equipped with a variety of image processing and security functions, providing safe and comfortable HMI solutions. Gerda's high-speed, large-size embedded RAM enables the highly functional systems with no external memory, which are consisted of fewer components at smaller system cost.
4th Generation of “Gerda™”, the Automotive HMI Display IC Series – KM2KS Series
In this video, we introduce the features and benefits of our 4th generation of “Gerda™”, the automotive HMI display IC series which were announced in a press release on May 20, 2025.

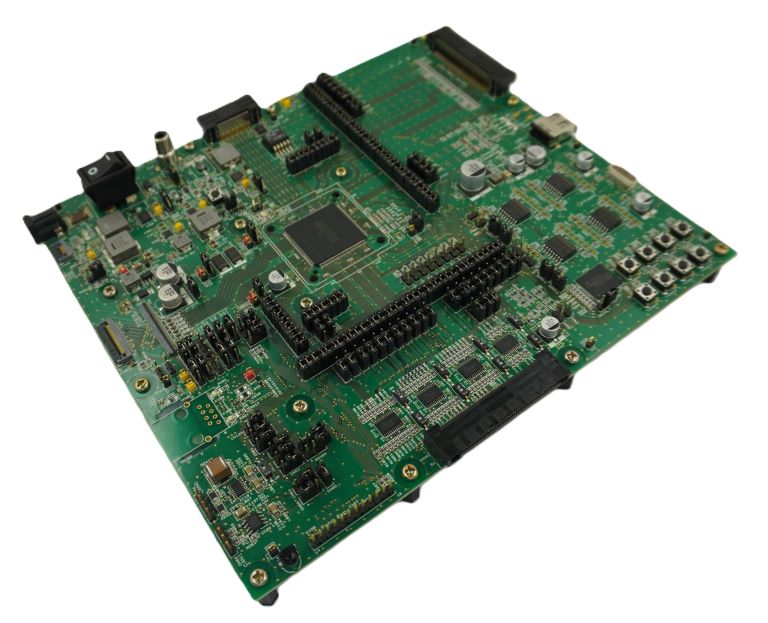

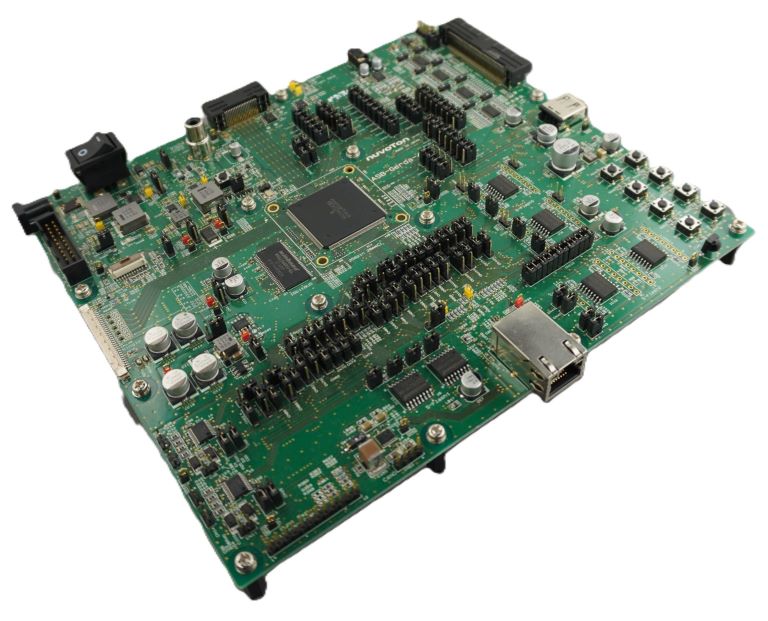

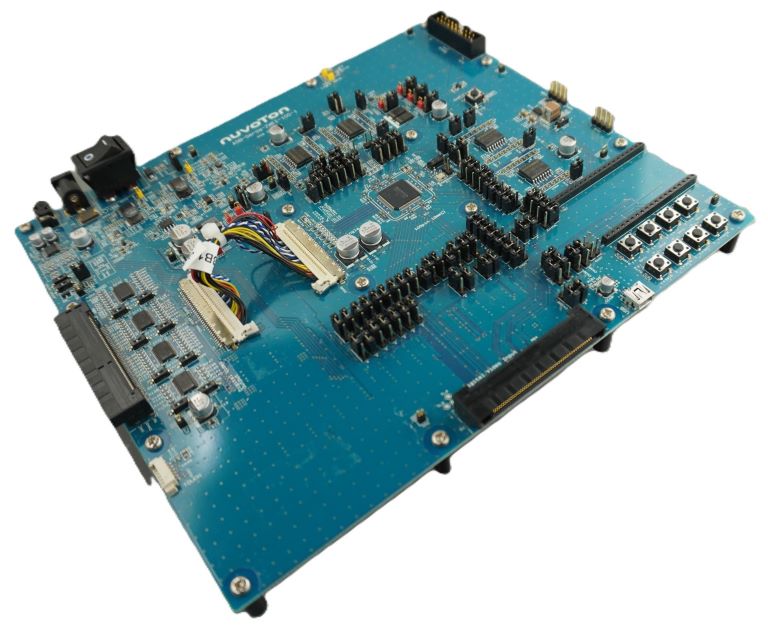

Evaluation boards for HMI Solutions
These evaluation boards enable comprehensive evaluation of Gerda™ series’ video input/output functions and overall feature performance.
They support a wide range of development activities, from software development to full system validation. Sample code and SDKs for various applications are also available, allowing you to begin functional evaluation immediately.
The evaluation board comes with an LCD, camera, cables, and software, enabling performance verification and initial evaluation of Gerda ICs.
