Gerda™-4M 系列

 mirror

As user interfaces in mobility applications—such as vehicle interiors and motorcycles—continue to diversify and advance, the required functionality and quality of display systems are becoming increasingly demanding. Gerda™ delivers safe and comfortable in‑vehicle Human Machine Interface (HMI) solutions by integrating a wide range of advanced image processing and robust security functions.With high‑speed, large‑capacity embedded memory, Gerda™ enables highly functional systems without the need for external memory, contributing to reduced component count and lower overall system cost.

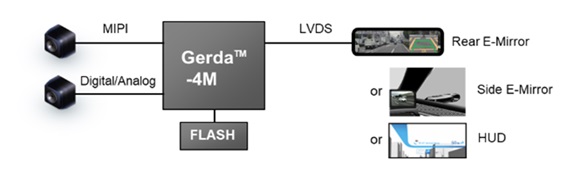

Gerda-4M is a family of Gerda™ HMI Display ICs targeted at automotive systems such as E-Mirror and Head-Up Displays (HUD). Gerda-4M has an Arm® Cortex®-M7 CPU, Image Quality adjustment Engine, 2.5D Graphics Engine, Large Built-in RAM, Warping Engine, Hardware Security Module (HSM) and many functional safety mechanisms.



Product detail

HQFP216

HQFP 216pins (24mm x 24mm)

Document

Gerda-4M Product Brief



Block Diagram

Gerda-4M Block Diagram

Click the image to enlarge.

Features

  • CPU subsystem
    • Arm® Cortex®-M7 CPU
    • DMA controllers
  • Video subsystem
    • Video Input
      • MIPI-CSI2/DSI (4-lane) or DRGB or CVBS
    • Video Output
      • Dual LVDS (4 lane) or DRGB I/F
      • Max display size: 1920×1080 @ 60FPS
    • 2.5D Graphics Engine
      • Warping Engine
      • Image Quality Adjustment Engine
      • Local Contrast Correction, 2DNR, Sharpness
  • Memory
    • Built-In RAM 8MB / 10MB
    • Quad SPI Flash
  • Audio
    • I2S / TDM / PCM
  • Communication I/F
    • CAN-FD
    • Ethernet 100Mbps
    • USB 2.0 HS
    • Peripaherals
      • I2C/SSP/UART/ADC/GPIO
  • Security
    • HSM supporting the EVITA Full
  • Safety
    • Functional safety for ASIL-B


Support tool

We provide product datasheets, functional safety manuals, and evaluation board to support your system design.
Please contact us first.

 Evaluation Board

These evaluation boards enable comprehensive evaluation of Gerda-4M’s video input/output functions and overall feature performance. They support a wide range of development activities, from software development to full system validation. Sample code and SDKs applications for E-Mirror and HUD are also available, allowing you to begin functional evaluation immediately. The evaluation board comes with peripheral interfece board, LCD panel, enabling performance verification and initial evaluation of Gerda-4M ICs.

FPD/GMSL to MIPI conversion board

This board converts external digital video signals (FPD, GMSL) into MIPI format. It allows for the input of MIPI signals into the Gerda-4M.

HDMI to DRGB conversion board

This board that converts HDMI signals into DRGB signals. It allows for the input of DRGB signals into the Gerda-4M.

DRGB-to-HDMI board

This board that converts the DRGB signal output from the Gerda-4M into HDMI signal.

Gerda-4M evaluation board

Gerda-4M Evaluation Board



Nuvoton Mobility Solutions

Gerda‑4M integrates high‑performance computing, high‑speed large‑capacity on‑chip memory, and advanced image technologies, delivering both ease of use and robust real‑time processing capabilities to enable safe and comfortable HMI solutions.

▶ Explore HMI Solutions
