What is the Periodic Operation mode for Timer controller? Issue Date：2015-02-10

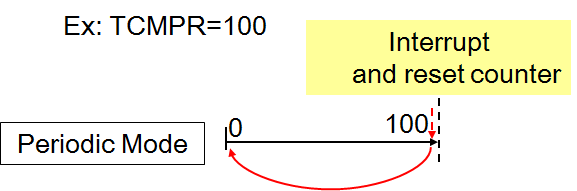

In Periodic Operation mode, the Timer will reset the 24-bit Timer counter and restart to count from 0 when each time the value of 24-bit up-counting Timer counter matches the setting of TCMPR (Timer Compare Register). At this moment, the Timer interrupt event flag (TIF) will be set by hardware and the interrupt signal is generated.
| Products: | Microcontrollers ,Arm Cortex-M0 MCUs ,M051 Base Series ,M0518 Series ,Mini51 Base Series ,Nano100/102 Base Series ,Nano110/112 LCD Series ,Nano120 USB Series ,Nano130 Advanced Series ,NUC029 Series ,NUC100/200 Advanced Series ,NUC120/122/123/220 USB Series ,NUC130/230 CAN Series ,NUC131/NUC1311 CAN Series ,NUC140/240 Connectivity Series ,Arm Cortex-M4 MCUs ,M451 Base Series ,M451M Series ,M452 USB Series ,M453 CAN Series ,NUC442/472 Series ,NUC505 Series |
|---|---|
| Applications: | |
| Function: | Peripherals,Timer and PWM,Timer |
