NuMaker-X-M55M1D
M55M1 Microcontroller Series
The M55M1 series microcontrollers are based on the Arm® Cortex®-M55 core with an operating frequency of up to 220 MHz. They include Arm® Helium™ DSP technology for enhanced digital signal processing and integrate the Arm® Ethos™-U55 microNPU to accelerate machine learning inference at the edge. The series provides up to 2 MB Flash and 1.5 MB SRAM，and supports the HyperBus interface for external memory expansion. The operating voltage range is 1.7V to 3.6V，and the operating temperature range is -40°C to +105°C，making it suitable for harsh industrial environments.
This series is suitable for embedded applications that require high computing performance，including real-time signal processing，advanced machine learning，high-performance control systems，sensor fusion，smart factory automation，medical devices，and communication systems.
NuMaker-X-M55M1D Development Board

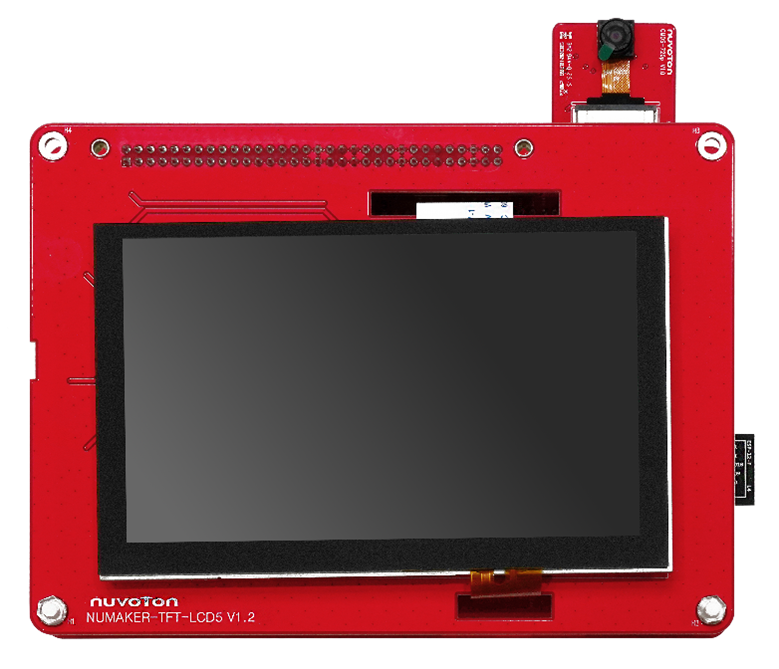

NuMaker-X-M55M1D is a development platform based on the NuMicro® M55M1 series microcontroller. It consists of the NuMaker-X-M55M1 development board, NuMaker-TFT-LCD5 V1.2 display module, and CMOS-720P V1.0 camera module. The board integrates key system components and rich peripheral interfaces to accelerate system design, prototyping, and machine learning application evaluation.
The NuMaker-X-M55M1 development board provides Arduino UNO compatible headers, multiple GPIOs, I2C, UART, SPI, and other common communication interfaces. It also supports the NuMaker-TFT-LCD module for human-machine interface development. This development board is equipped with the Nu-Link2-Me debugger and programmer supporting SWD, online and offline programming, on-chip debugging, and debug message output to a PC through a virtual COM port (VCOM).
Board Features
- NuMicro M55M1H2LJAE as the main microcontroller, with a maximum operating frequency of 220 MHz.
- Full-pin expansion headers for M55M1H2LJAE.
- MicroNPU: provides 110 GOP/s computing performance.
- Arduino UNO compatible expansion headers.
- Ammeter header for measuring microcontroller power consumption.
- Flexible power supply options:
- External VDD power connector.
- Arduino UNO compatible Vin expansion header.
- USB FS connector on the NuMaker-X-M55M1D development board.
- USB HS connector on the NuMaker-X-M55M1D development board.
- ICE USB connector on Nu-Link2-Me.
- This development board is equipped with Nu-Link2-Me debugger and programmer:
- Debugging through the SWD interface.
- Online and offline programming support.
- Virtual COM port function.
- On-board components:
- 8 MB HYPERRAM™.
- User LED and buttons.
- 10/100M Ethernet PHY.
- USB FS OTG and USB HS OTG.
- Audio Codec.
- Micro SD Card slot.
- CAN FD transceiver.
- MEMS microphone.
- Wi-Fi module.
- IMU.
Video
Click the button below to watch the NuMaker-X-M55M1D video.
