The Temperature Monitoring PDF Data Logger is used to measure and record the temperature information and generate PDF data log automatically based on NuMicro® M483 MCU.

Furthermore, it can also upload real-time data through 4G module and display information such as time, temperature, network signal, operating status, battery level, etc. on the OLED screen.

• Feature


  -	Temperature measurement range: -99.0℃ to 99.0℃
  -	High Accuracy: ≤ ±0.5℃
  -	Real time upload of time, temperature, location and other information through 4G module
  -	Generates PDF data log file automatically in USB device
  	-Minimal PDF library (Optimized only 30 KB of Flash and 7 KB of RAM)
  -	GUI tool on PC synchronize device status
  	-Synchronize RTC and warning log data with Nuvoton Logger

• Specifications


  M483 (32-bit Arm® Cortex®-M4)
  -	Operation frequency up to 192 MHz
  -	Supports DSP / FPU
  -	Memory
  	- FLASH 512 KB
  	- SRAM 160 KB
  -	USB
  	- 1X USB HS OTG

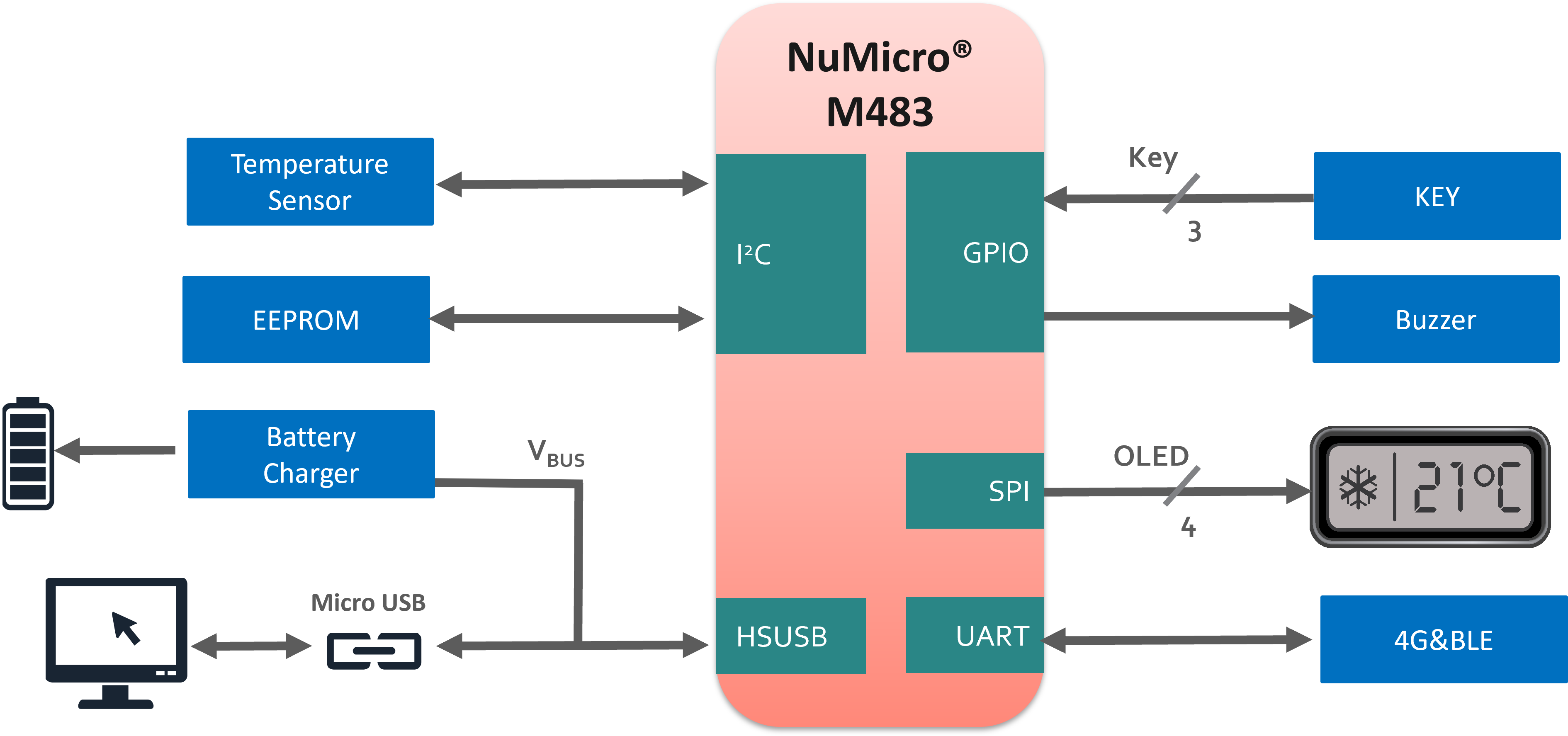

• System Block Diagram
